TABLA Modular Shoring System

Step 1 - Adjust prop height

Step 2 - Assembly 1st tower by using gate braces lock 3 prop as L- shape

Step 3 - Hang panel on drop head of prop. Prepare 2 ADT tools for erection.

Step 4 - At hanged panel, the first ADT tool is inserted into the hole on top of panel to protect panel falling Down. The second ADT tool is inserted into the hole on bottom to push panel up then insert prop to finish first tower.

Step 1 - Put filler on drop head of prop.

Step 2 -  Lock filler with gravity lock.

Step 3 - Adjust telescopic beam and put on filler. Repeat until complete.

Step 4 - Cut plywood and put on telescopic beam. Nail plywood on wooden part telescopic beam

Step 1 - Put filler on drop head of prop.

Step 2 - Lock filler with gravity lock.

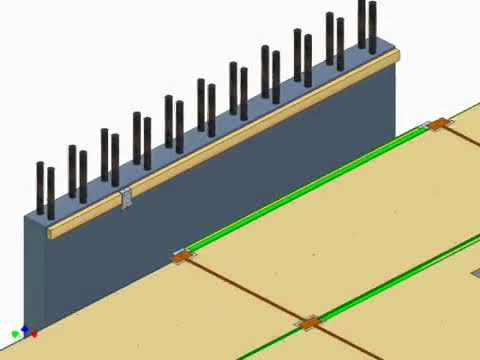

Step 3 - Fix timber on the wall. Nail telescopic beam hanger on timber.

Step 4 - Adjust telescopic beam.

Step 5 - Put telescopic beam on filler and telescopic beam hanger.

Step 6 -  Repeat Step 3 - Step 6 until complete.

Step 7 - Cut plywood and put on telescopic beam. Nail plywood on wooden part telescopic beam.

Step 1 - Hang panel at cantilever position.

Step 2 - Protect panel to fall down by Safety chain.

Step 3 - Install panel connectors by fixing with panel with bolts.

Step 4 - Connect cantilever posts to panel connector by fixing bolts.

Step 5 - Install edge mouthing shoes at the bottom of cantilever post. Then wockers push cantilever post to edge of slab. Edge mounting shoes sit on the edge of slab.

Step 6 - After finish leveling,Insert safety red pin into hole of panel, pass thru holes of prop head to lock cantilever set.

Step 7 - End with cross bracing

Step 1 - Move ADT tools to position.

Step 2 - Pull to release lock and hit the other side of lock by hammer for easier releasing. Drop head move down

Step 3 - Use striping tools to pull panel down. Using ADT tools and worker to remove panel.
